Home :: Accessories and Cables :: USB TO SERIAL 1 PORT RS-485 2 WIRE WITH

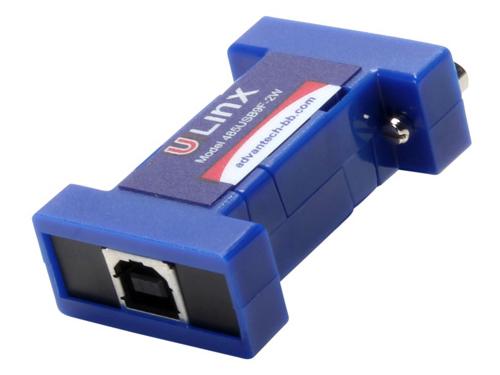

Advantech B+B SmartWorx USB TO SERIAL 1 PORT RS-485 2 WIRE WITH

USB TO SERIAL 1 PORT RS-485 2 WIRE WITH
Manufacturer
SKU
Advantech-New-485USB9F-2W
Quantity in stock
Contact Us for Availability
Weight
0.50 lbs
Part Number
485USB9F-2W
Condition
New
Time to ship:
within 30 days (by December 5, 2024)
Our price:
$110.78

Qty
Universal Serial Bus (USB) has become the connectivity workhorse of todays PCs replacing the familiar serial ports. However many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs you need a simple and reliable conversion solution. The offer this solution in a space saving USB Port powered package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. Choose the for RS-485 2-wire applications Locked serial number versions are also available (see the installation notes in the driver section). A one meter USB cable is included. Remember when it comes to USB to Serial Conversion B&B Electronics Ulinx brand is your number one choice.

Specification:
Device Type: Media converter
Form Factor: Plug-in module
Data Transfer Rate: 12 Mbps
Connectivity Technology: Wired
Interfaces: RS-485; USB 2.0; 9 pin D-Sub (DB-9)
Width: 2.30 Inch
Depth: 1.30 Inch
Height: 6.00 Inch
Data Link Protocol: RS-485; USB 2.0
