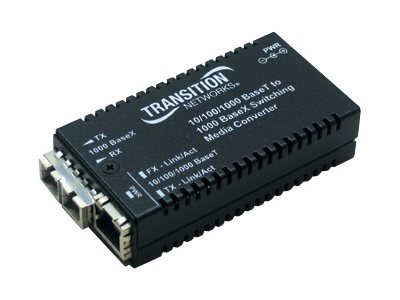

The mini media converters provide a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment. With its miniature size the Mini offers a space saving alternative while it converts copper to fiber with the smallest footprint available in the industry.
Specification:
Device Type: Media converter
Form Factor: External
Connectivity Technology: Wired
Cabling Type: 10Base-T 1000Base-LX 100Base-TX 1000Base-T
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 1310 nm
Max Transfer Distance: 6.2 miles
Status Indicators: Power link/activity
Features: Auto-negotiation AutoCross full duplex mode Link Pass-Through Automatic Link Restoration
Compliant Standards: IEEE 802.3
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Compliant Standards: FCC Class A certified UL CISPR 22 Class A cUL EN55024 EN55022 Class A
Power Device: External power adapter
Power Consumption Operational: 3.15 Watt
Width: 1.8 in
Depth: 3.3 in
Height: 0.9 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
