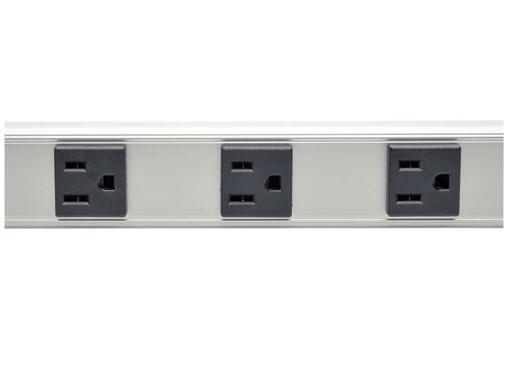

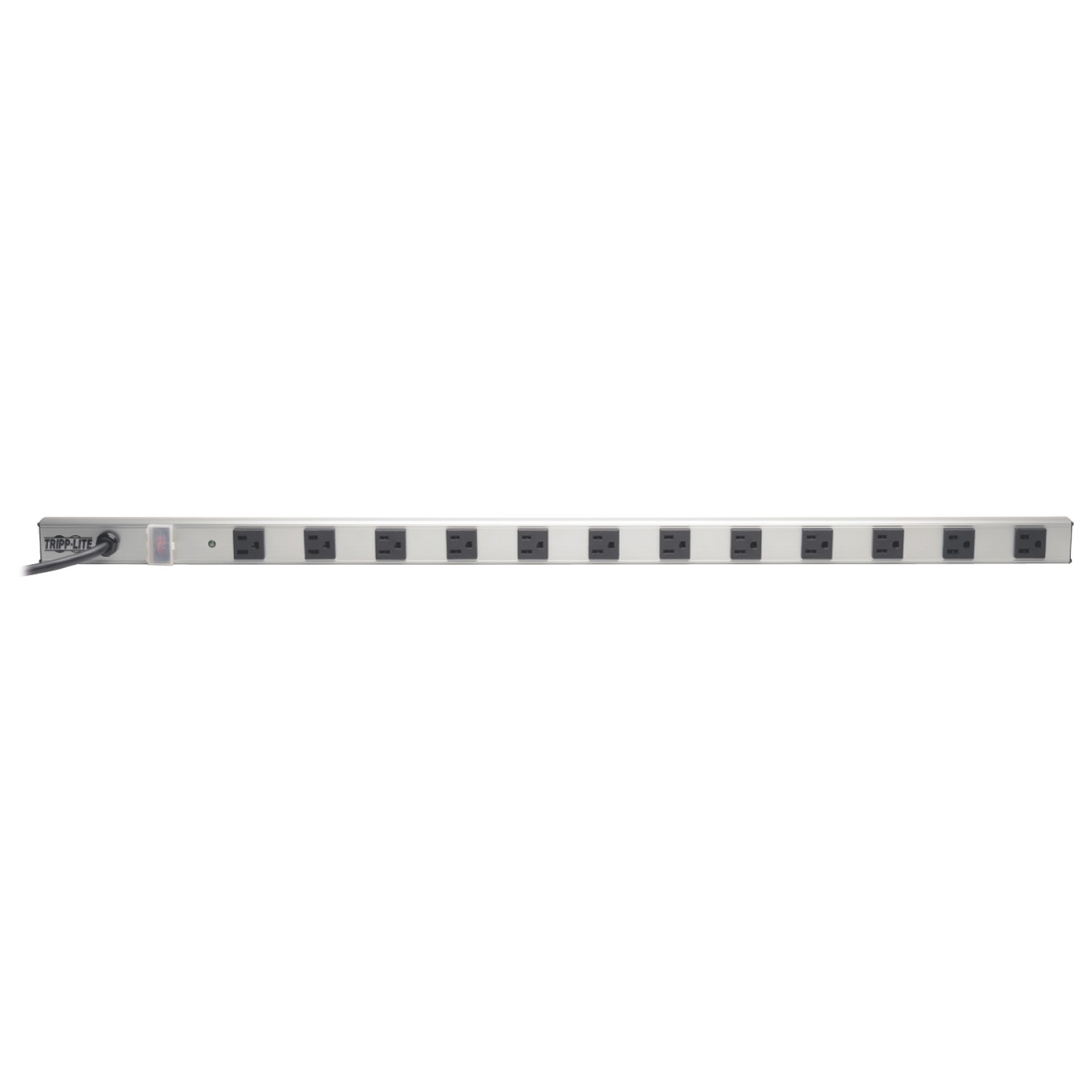

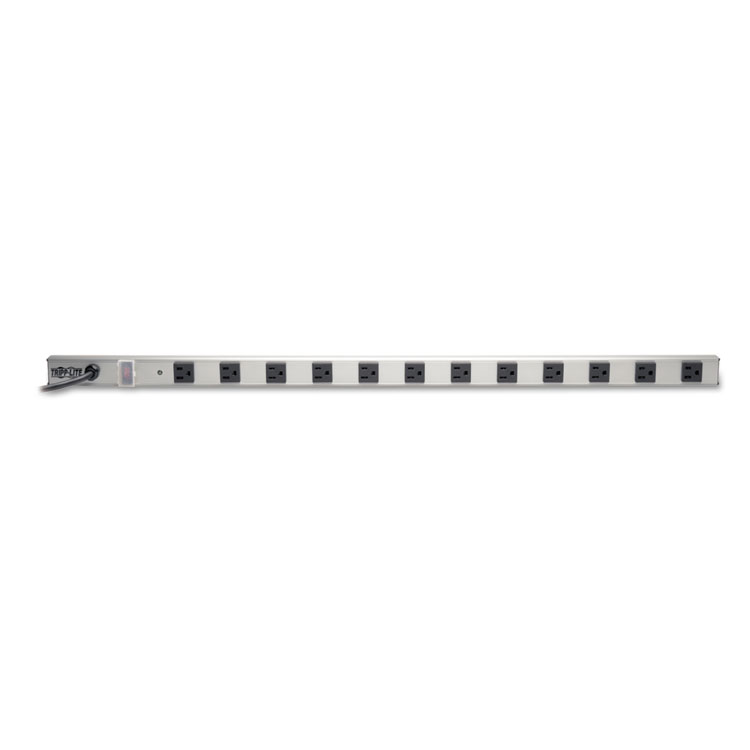

The power strip with AC surge suppression offers a convenient method of horizontal or vertical power distribution in equipment racks computer rooms workbenches raceways and more. Includes 12 NEMA 5-15R outlets with 2.48-in. center-to-center spacing 15-ft. AC line cord and adjustable mounting clips for installation in a wide variety of applications. Protects connected equipment from transient surges and line noise with built-in surge suppression rated at 1050 joules. This corded multi-outlet strip reduces cabling clutter and enables the connection of multiple electrical devices to a single AC wall socket. Features rugged all-metal housing lighted power switch with transparent guard to prevent accidental shutoff 15A resettable circuit breaker and attractive gray housing with black output receptacles. PLUG/OUTLETS: Input: NEMA 5-15P Output: 12 NEMA 5-15R ELECTRICAL: 120V AC 50/60Hz 15A (Requires standard NEMA 5-15R wall receptacle) FORMAT: 3-ft. corded vertical/raceway power distribution strip SURGE SUPPRESSION: 1050 joules Specification OVERVIEW Style: Strip OUTPUT Frequency Compatibility: 60 Hz Output (Watts): 1800 Circuit Breaker (amps): 15 Outlet Type: NEMA 5-15R Outlet Spacing: 2.56-in. center-to-center spacing INPUT Nominal Input Voltage(s) Supported: 120V AC Recommended Electrical Service: 120V Input Connection Type: NEMA 5-15P Voltage Compatibility (VAC): 120 Maximum Surge Amps: 22000 LEDS ALARMS & SWITCHES Switches: Combination AC circuit breaker and lighted 2-position power switch controls power to all outlets Locking Switch Cover: Transparent locking switch cover SURGE / NOISE SUPPRESSION AC Suppression Joule Rating: 1050 UL1449 Let Through Rating: 500V UL verified PHYSICAL Unit Dimensions (hwd / in.): 1.25 x 1.62 x 36 Unit Dimensions (hwd / cm): 3.18 x 4.11 x 91.44 Included Mounting Accessories: Set of adjustable mounting clamps Receptacle Color: Black Color (AC Line Cord): Black Outlets Measurement (Center to Center): 2.48 CERTIFICATIONS UL1449 3rd Edition (AC Suppression): UL1449 3rd EDITION UL1363 (Power Tap): UL1363 cUL / CSA (Canada): cUL WARRANTY Product Warranty Period (Worldwide): Lifetime limited warranty
Specification:
Device Type: Surge suppressor - external
Cord Length: 4.57 m
Color: Attractive gray
Input Voltage: AC 120 V
Frequency Required: 50/60 Hz

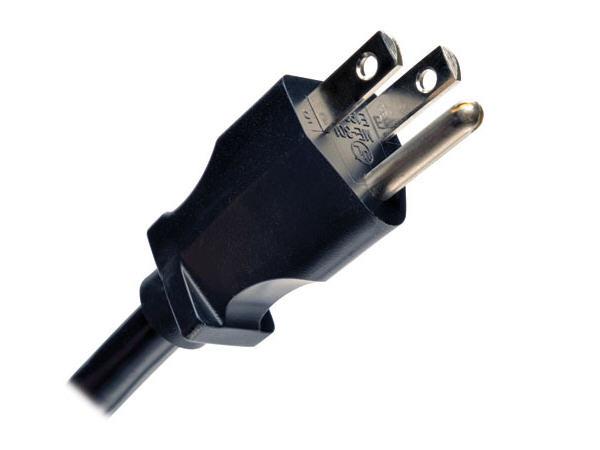

Input Connector(s): 1 x power NEMA 5-15P
Power Output Connectors Details: 12 x power NEMA 5-15
Output Voltage: AC 120 V ( 50/60 Hz )
Max Electric Current: 15 A
Power Capacity: 1800 Watt
Surge Suppression: Yes
Surge Energy Rating: 1050 Joules
Max Spike Current: 22000 A
Circuit Protection: Circuit breaker
Cables Included: 1 x power cable - 15 ft
Features: Rugged metal housing
Compliant Standards: cUL UL 1363 UL 1449
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Width: 36 in
Depth: 1.6 in
Height: 1.3 in
