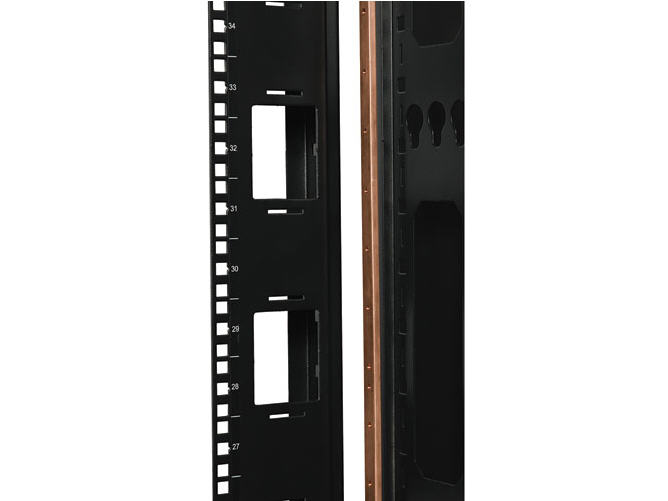

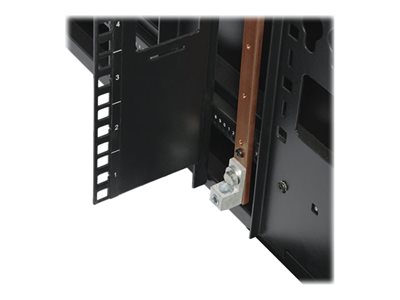

The is a full length (42U) bus grounding bar made from heavy-gauge solid copper that attaches to Rack Enclosure Cabinets or Open Frame Racks to provide convenient ground contact for standard rackmount equipment. Every U space has a drilled and tapped hole to allow a ground wire jumper to be installed. The jumper then bridges to the individual pieces of equipment allowing a direct path to ground rather than going through surrounding equipment. The can mount in a Tripp Lite enclosure in two ways it can be screwed into the Rack Enclosures (hardware included) or it can be installed using the tool less mounting buttons in the Open Frame Racks.
Specification:
Product Type: Grounding bar vertical
Width: 0.6 in
Depth: 0.2 in
Height: 75.6 in
Weight: 4 lbs
Specification:
Product Type: Grounding bar vertical
Width: 0.6 in
Depth: 0.2 in
Height: 75.6 in
Weight: 4 lbs
