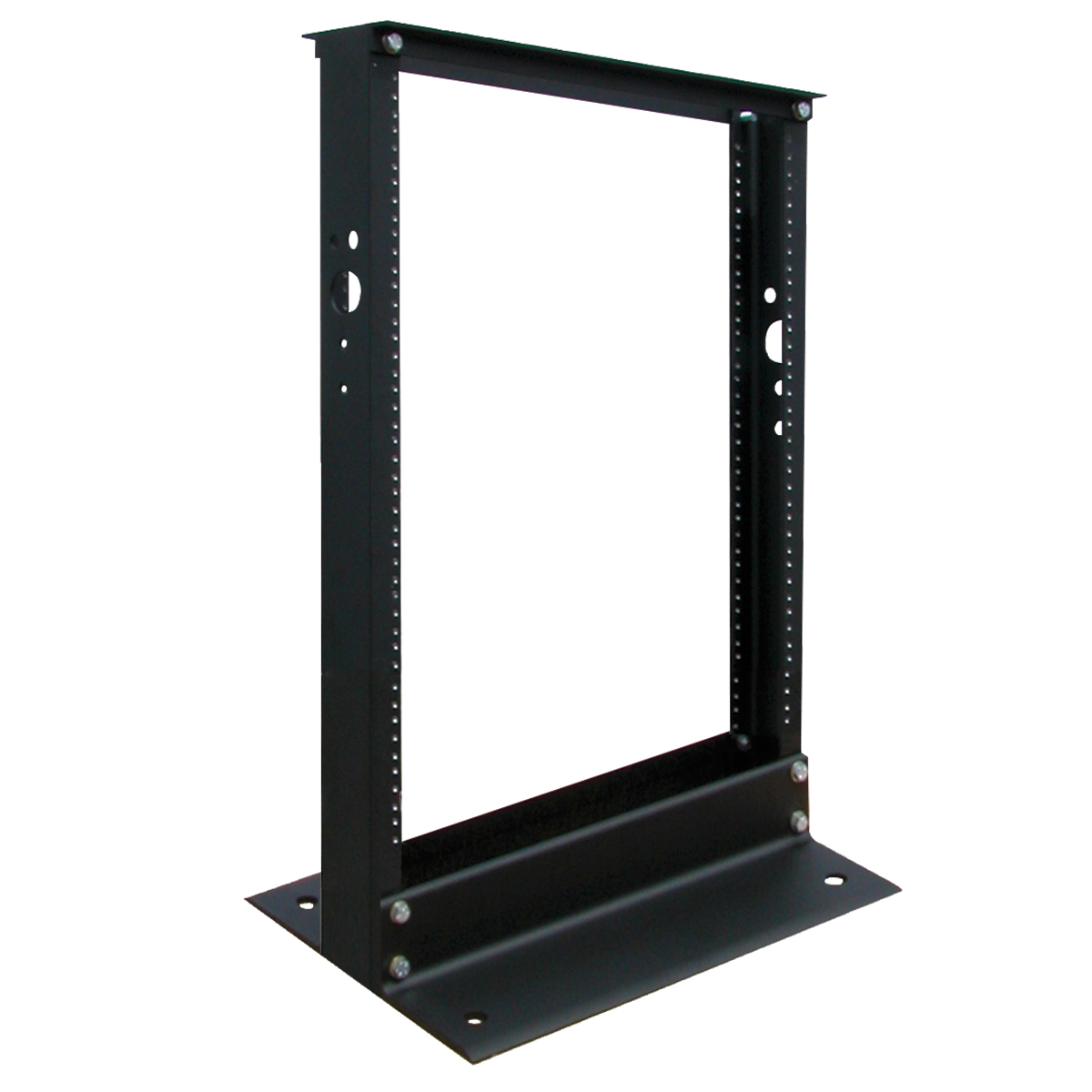

Tripp Lites 2-Post SmartRack Open Frame Rack is an economical way to accommodate 13U of rack space for 19-inch rackmount applications in limited spaces. Its heavy-duty aluminum construction can safely support 800 lbs. of rackmount equipment. The black textured powder coat finish makes it resistant to scratching while giving it a classic attractive appearance. The is easy to install due to a self-squaring design combined with numbered mounting positions and bolt down provisions. Only standard hand tools are required for installation (9/16 wrench and 9/16 socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization as needed. The 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D IEC 60297-3-100 DIN 41494 and RoHS and is backed by a 5-year warranty. PHYSICAL Installed whole system maximum rack depth (inches): 4.8 Installed whole system maximum rack depth (cm): 12.19 Rack Height: 13U Shipping Dimensions (HWD/in): 4.5 x 6.1 x 28 Shipping Dimensions (HWD/cm): 11.4 x 15.5 x 71.1 Shipping weight (lbs): 22.1 Shipping weight (kg): 10.02 Unit Dimensions (in.): 28 x 20.3 x 4.75 (14 total depth with support base) Unit weight (lbs): 20 Unit weight (kg): 9.07 Unit Dimensions (cm): 71 x 51.6 x 12.1 Color: Black Style: 2-Post Weight Capacity - Stationary (lbs): 800 Weight Capacity - Stationary (kg): 362.9 CERTIFICATIONS NOM (Mexico): Tested to NOM (Mexico) Approvals: EIA-310-D IEC 60297-3-100 DIN 41494 RoHS
Specification:
Product Type: Rack
Product Material: Aluminum
Package Content: Washer 28 screws (12-24)
Rack Size: 19
Height (Rack Units): 13U
Width: 20.3 in
Depth: 4.8 in
Height: 28 in
Weight: 20 lbs
Color: Black
Finish: Textured powder paint
Weight Limit: 800 lbs
Features: Integrated cable management
Compliant Standards: EIA-310-D NOM RoHS DIN 41494 IEC 60297-3-100
Service & Support: 5 years warranty
Service & Support Details: Limited warranty - 5 years
