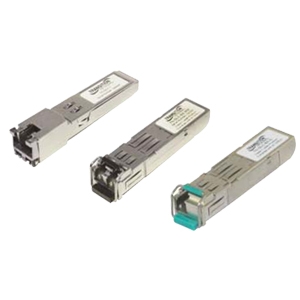

The Transition Networks TN-GLC-xxx series small form factor pluggable (SFP) transceiver modules are designed to install in any SFP port allowing for 1000Base-T 1000Base-SX or 1000Base-LX interfaces to the network through the SFP connector. The TN-GLC-xxx transceivers are Cisco compatible and are designed for bidirectional serial-optical data communication such as Gigabit Ethernet or fiber channel.
Specification:
Device Type: SFP (mini-GBIC) transceiver module
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 1000Base-FX
Data Link Protocol: Gigabit Ethernet
Fibre Channel: FC-PI
Data Transfer Rate: 1.25 Gbps
Optical Wave Length: 1310 nm
Max Transfer Distance: 12.4 miles
Features: Hot swap module replacement
Compliant Standards: IEEE 802.3 IEEE 802.3z
Interfaces: 1 x Ethernet 1000Base-FX - LC single mode x 2
Compatible Slots: 1 x SFP (mini-GBIC)
Compliant Standards: EN 60825 FDA
Width: 0.5 in
Depth: 2.2 in
Height: 0.3 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
Specification:
Device Type: SFP (mini-GBIC) transceiver module
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 1000Base-FX
Data Link Protocol: Gigabit Ethernet
Fibre Channel: FC-PI
Data Transfer Rate: 1.25 Gbps
Optical Wave Length: 1310 nm
Max Transfer Distance: 12.4 miles
Features: Hot swap module replacement
Compliant Standards: IEEE 802.3 IEEE 802.3z
Interfaces: 1 x Ethernet 1000Base-FX - LC single mode x 2
Compatible Slots: 1 x SFP (mini-GBIC)
Compliant Standards: EN 60825 FDA
Width: 0.5 in
Depth: 2.2 in
Height: 0.3 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
