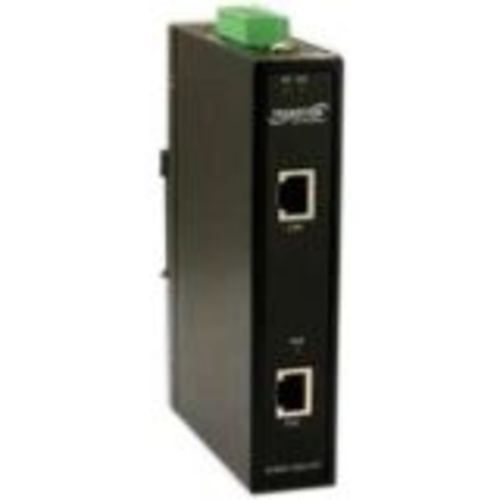

The is a industrial grade 1-port 10/100/1000Base-T PoE+ Mid-span Injector which provides a simple solution to enabling the existing infrastructure with IEEE802.3at PoE+ capability. Transition Networks Industrial Mid-span Injectors are designed to reliably operate in harsh environments such as those found on factory floors out-door enclosures or other hazardous environments.
Specification:
Output Power: 30 W Per Port
Marketing Information: The SI-IES-1200-LRT is a industrial grade 1-port 10/100/1000Base-T PoE+ Mid-span Injector which provides a simple solution to enabling the existing infrastructure with IEEE802.3at PoE+ capability. Transition Networks Industrial Mid-span Injectors are desi
Product Name: Hardened 1-port Mid-span PoE+ Injector
Product Type: PoE Injector
Input Ports: 1 x RJ-45 10/100/1000Base-T
Output Ports: 1 x RJ-45 10/100/1000Base-T
Certifications & Standards: IEEE 802.3
Certifications & Standards: IEEE 802.3u
Certifications & Standards: IEEE 802.3ab
Certifications & Standards: IEEE 802.3at
Certifications & Standards: UL508
Certifications & Standards: IP30
Certifications & Standards: FCC Class A
Certifications & Standards: CE Mark
Certifications & Standards: EN61000-6-4
Certifications & Standards: EN61000-6-2; EN61000-4-2 (ESD)
Certifications & Standards: EN61000-4-3 (RS)
Certifications & Standards: EN61000- 4-4 (EFT)
Certifications & Standards: EN61000-4-5 (Surge)
Certifications & Standards: EN61000-4-6(CS) EN61000-4-8 (Magnetic Field)
Certifications & Standards: IEC60068-2-27 (Shock)
Certifications & Standards: IEC60068-2-32 (Free fall)
Certifications & Standards: IEC60068-2-6 (Vibration)
Compatibility: Wireless Access Point
Compatibility: Camera
Form Factor: DIN Rail/Wall Mountable External
Green Compliance Certificate/Authority: RoHS
Green Compliance Certificate/Authority: WEEE
Green Compliant: Yes
Limited Warranty: Lifetime
Depth: 3.7
Form Factor: DIN Rail/Wall Mountable External
Height: 5.5
Width: 1.2
Input Voltage: 24 V DC
Input Voltage: 48 V DC
Output Power: 30 W Per Port
Compatibility: Wireless Access Point
Compatibility: Camera
Form Factor: DIN Rail/Wall Mountable External
Width: 1.2
Compatibility: Wireless Access Point
Compatibility: Camera
Input Voltage: 24 V DC
Input Voltage: 48 V DC
Output Power: 30 W Per Port
Limited Warranty: Lifetime
