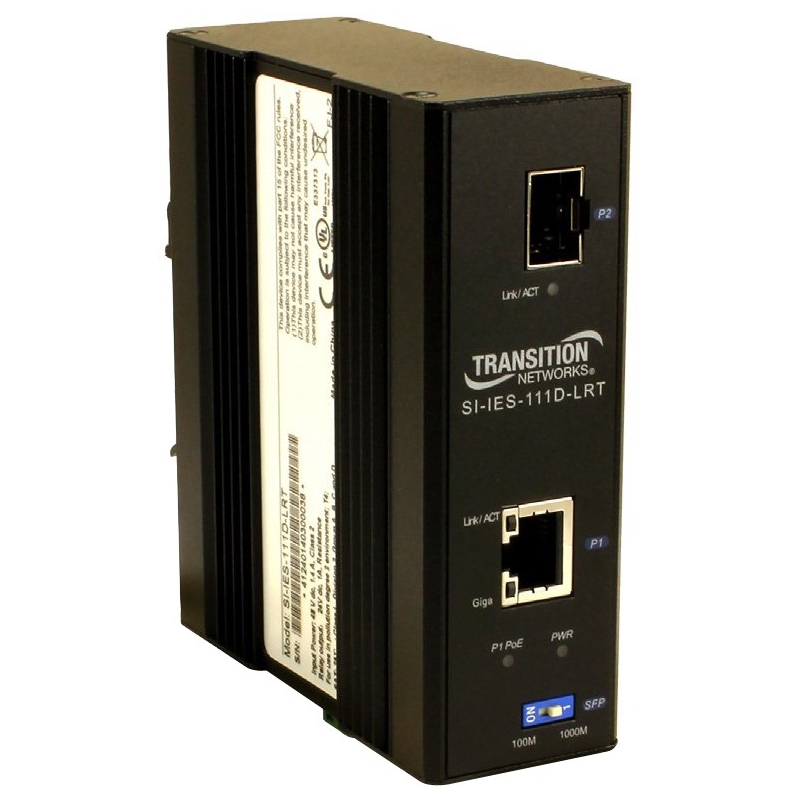

has a SFP slot and a RJ45 port. The RJ45 port supports PoE+ for high powered application. The SFP slot provides more flexibility when planning and implementing the network. This makes it possible to easily change the transmission mode and distance of the connection by using a different module.
Specification:
Device Type: Media converter
Form Factor: DIN rail mountable
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-TX 1000Base-T 1000Base-X 100Base-X
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Max Transfer Distance: 0.6 miles
Status Indicators: Power link/activity
Features: Link Fault Pass Through function (LFP) non blocking ports
Compliant Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE 802.3at
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T ( PoE+ output ) - RJ-45 female
Compliant Standards: FCC Class A certified EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EN 61000-4-5 EN 61000-6-2 EN 61000-4-8 EN 61000-6-4 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508 IP30
Power Over Ethernet (PoE): PoE+
Voltage Required: DC 48 V
Power Consumption Operational: 34 Watt
Width: 1.4 in
Depth: 3.7 in
Height: 4.3 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: -40
Specification:
Device Type: Media converter
Form Factor: DIN rail mountable
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-TX 1000Base-T 1000Base-X 100Base-X
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Max Transfer Distance: 0.6 miles
Status Indicators: Power link/activity
Features: Link Fault Pass Through function (LFP) non blocking ports
Compliant Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE 802.3at
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T ( PoE+ output ) - RJ-45 female
Compliant Standards: FCC Class A certified EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 EN 61000-4-5 EN 61000-6-2 EN 61000-4-8 EN 61000-6-4 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508 IP30
Power Over Ethernet (PoE): PoE+
Voltage Required: DC 48 V
Power Consumption Operational: 34 Watt
Width: 1.4 in
Depth: 3.7 in
Height: 4.3 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: -40
