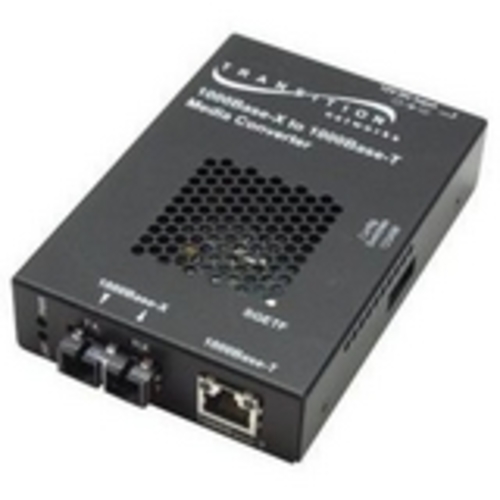

Migrate to Gigabit Ethernet in a cost-effective manner. Used in conjunction with lower cost 1000BASE-T switches it gives companies an advantage that the high bandwidth Gigabit Ethernet offers. Transition Networkss 1000BASE-T to SX/LX converters allow to extend the bandwidth to users outside the reach of the 1000BASE-T standard.
Specification:
Device Type: Media converter
Form Factor: External
Localization: North America
Connectivity Technology: Wired
Cabling Type: 1000Base-LX 1000Base-T
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 1310 nm
Max Transfer Distance: 6.2 miles
Status Indicators: Link activity power receive
Features: Auto-negotiation half duplex mode full duplex mode
Compliant Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3xy
Interfaces: 1 x Ethernet 1000Base-T - RJ-45 female
Compliant Standards: FCC Class A certified UL cUL EN55024 EN55022 Class A
Power Device: External power adapter
Width: 3.2 in
Depth: 4.8 in
Height: 1 in
Weight: 2 lbs
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
Specification:
Device Type: Media converter
Form Factor: External
Localization: North America
Connectivity Technology: Wired
Cabling Type: 1000Base-LX 1000Base-T
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 1310 nm
Max Transfer Distance: 6.2 miles
Status Indicators: Link activity power receive
Features: Auto-negotiation half duplex mode full duplex mode
Compliant Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3xy
Interfaces: 1 x Ethernet 1000Base-T - RJ-45 female
Compliant Standards: FCC Class A certified UL cUL EN55024 EN55022 Class A
Power Device: External power adapter
Width: 3.2 in
Depth: 4.8 in
Height: 1 in
Weight: 2 lbs
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
