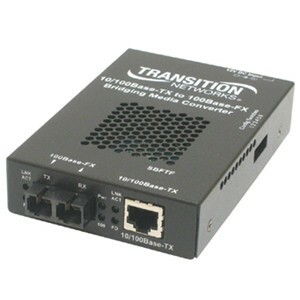

10/100 Bridging Media Converter Cost-Effective Stand-Alone Unit 10/100Mbps media converters with full switching capability. Designed to extend the reach of a 10/100 network and offer cost-effective conversion and integration solutions for half and full-duplex environments.
Specification:
Device Type: Media converter
Form Factor: External
Localization: Latin America
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-FX 100Base-TX
Data Link Protocol: Ethernet Fast Ethernet
Data Transfer Rate: 100 Mbps
Optical Wave Length: 1300 nm
MAC Address Table Size: 1K entries
Max Transfer Distance: 1.2 miles
Status Indicators: Link activity port transmission speed port duplex mode power
Features: Auto-negotiation AutoCross Far End Fault (FEF) half duplex mode full duplex mode
Compliant Standards: IEEE 802.3 IEEE 802.3u
Interfaces: 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Compliant Standards: FCC Class A certified CSA UL EN 60950 EN55024 EN55022 Class A EN55022 Class B
Power Device: External power adapter
Width: 3.2 in
Depth: 4.8 in
Height: 1 in
Weight: 2 lbs
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
Specification:
Device Type: Media converter
Form Factor: External
Localization: Latin America
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-FX 100Base-TX
Data Link Protocol: Ethernet Fast Ethernet
Data Transfer Rate: 100 Mbps
Optical Wave Length: 1300 nm
MAC Address Table Size: 1K entries
Max Transfer Distance: 1.2 miles
Status Indicators: Link activity port transmission speed port duplex mode power
Features: Auto-negotiation AutoCross Far End Fault (FEF) half duplex mode full duplex mode
Compliant Standards: IEEE 802.3 IEEE 802.3u
Interfaces: 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Compliant Standards: FCC Class A certified CSA UL EN 60950 EN55024 EN55022 Class A EN55022 Class B
Power Device: External power adapter
Width: 3.2 in
Depth: 4.8 in
Height: 1 in
Weight: 2 lbs
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
