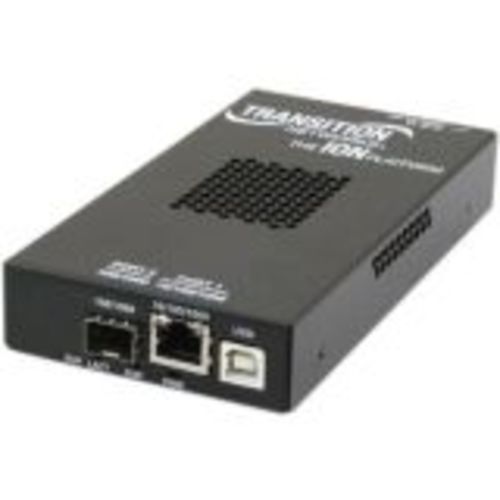

Transition S323x series automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration and allows devices to perform automatic configuration to achieve the best possible mode of operation over a link.
Specification:
Device Type: Media converter
Form Factor: External
Localization: North America
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-TX 1000Base-T
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
MAC Address Table Size: 8K entries
Remote Management Protocol: SNMP 1 RMON Telnet SNMP 2c HTTP TFTP
Status Indicators: Link activity power
Features: DHCP support auto-negotiation VLAN support Syslog support DiffServ support IPv6 support AutoCross firmware upgradable Link Fault Pass Through function (LFP) SNTP support Quality of Service (QoS) RADIUS support SSH support Jumbo Frames support
Compliant Standards: IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.3ah
Expansion Slot(s): 2 (total) / 2 (free) x SFP (mini-GBIC)
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Compliant Standards: CSA UL EN55024 EN55022 Class A
Power Device: External power adapter
Width: 3.2 in
Depth: 6.5 in
Height: 1 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
Specification:
Device Type: Media converter
Form Factor: External
Localization: North America
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-TX 1000Base-T
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
MAC Address Table Size: 8K entries
Remote Management Protocol: SNMP 1 RMON Telnet SNMP 2c HTTP TFTP
Status Indicators: Link activity power
Features: DHCP support auto-negotiation VLAN support Syslog support DiffServ support IPv6 support AutoCross firmware upgradable Link Fault Pass Through function (LFP) SNTP support Quality of Service (QoS) RADIUS support SSH support Jumbo Frames support
Compliant Standards: IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.3ah
Expansion Slot(s): 2 (total) / 2 (free) x SFP (mini-GBIC)
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Compliant Standards: CSA UL EN55024 EN55022 Class A
Power Device: External power adapter
Width: 3.2 in
Depth: 6.5 in
Height: 1 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
