Transition Networks NETWORK INTERFACE CARD - 10/100/1000 RJ-45 POE+ TO SFP

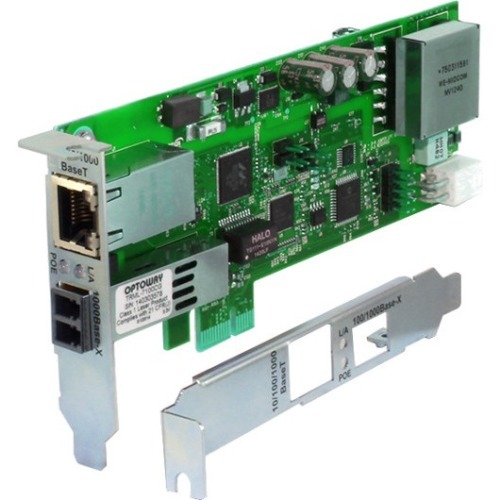

The N-GXE-PoE Network Interface Card (NIC) provides connectivity to a secure fiber network while also delivering power to a PoE powered device (PD) such as a VoIP phone with a copper UTP interface. It fully complies with all IEEE 802.3z and 1000 Base-X standards providing up to 2000 Mbps fullduplex bandwidth capacity. Developed to support high-end users this port NIC has 1000 Base-X fiber network interface port and switched 10/100/1000 Base-T port supporting IEEE 802.3 at PoE+ power. It is designed to allow a PC to power a VoIP phone or any other traditional copper powered device over a secure fiber network. Additionally the NIC also has the ability to provide traffic switching functions between the copper and fiber ports even when the PC is in a sleep mode. Combining the functions of PC connectivity and VoIP phone connectivity into one device saves installation time expense and the space of having two devices at the desktop. When the VoIP traffic is filtered and prioritized by third-party devices like an Ethernet switch and the IP phone this PoE NIC will pass all tagged traffic ensuring users experience a high level of quality of service.

Specification:
Device Type: Network adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express x1
PCI Specification Revision: PCIe 2.1
Bus Voltage: 3.3 V
Ports: Gigabit SFP x 1 + Gigabit Ethernet (PoE+) x 1
Connectivity Technology: Wired
Cabling Type: Ethernet 10Base-T Ethernet 100Base-TX Ethernet 1000Base-T Ethernet 1000Base-X Ethernet 100Base-X
Data Link Protocol: 10Mb LAN 100Mb LAN GigE
Data Transfer Rate: 1 Gbps
MAC Address Table Size: 8K entries
Status Indicators: Port transmission speed port duplex mode PoE link/activity
Features: Flow control full duplex capability VLAN support wake on LAN (WOL) Jumbo Frames support PoE+ Energy Efficient Ethernet PXE 2.1 support VLAN filtering
Compliant Standards: IEEE 802.3 IEEE 802.3z IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3at
Interfaces: 1 x 1000Base-X - SFP (mini-GBIC)
