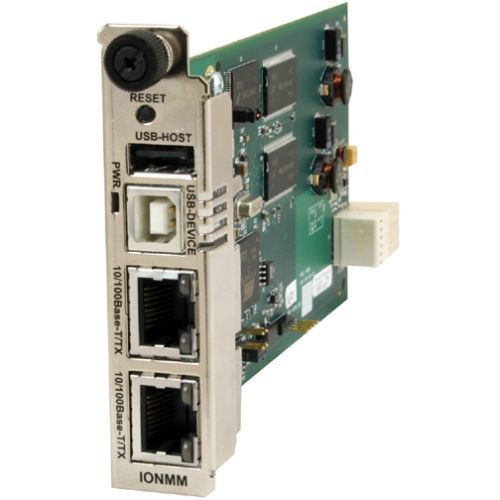

To take full advantage of the features and functions available with the ION Chassis an ION Management Module is required. The ION Management Module connects to the chassis backplane and communicates with the individual cards in the ION Chassis. Only management traffic - no end-user data traffic - is sent across the ION Chassis backplane to maintain security.
Specification:
Device Type: Network management device
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Link Protocol: Ethernet Fast Ethernet
Remote Management Protocol: SNMP 1 SNMP 2 Telnet TFTP SSH
Features: VLAN support Trivial File Transfer Protocol (TFTP) support SSH support
Encryption Algorithm: SSL
Interfaces: 2 x 100Base-TX (management)
Compatible Slots: 1 x expansion slot
Designed For: Transition 19-Slot Chassis for The ION Platform
Specification:
Device Type: Network management device
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Link Protocol: Ethernet Fast Ethernet
Remote Management Protocol: SNMP 1 SNMP 2 Telnet TFTP SSH
Features: VLAN support Trivial File Transfer Protocol (TFTP) support SSH support
Encryption Algorithm: SSL
Interfaces: 2 x 100Base-TX (management)
Compatible Slots: 1 x expansion slot
Designed For: Transition 19-Slot Chassis for The ION Platform
