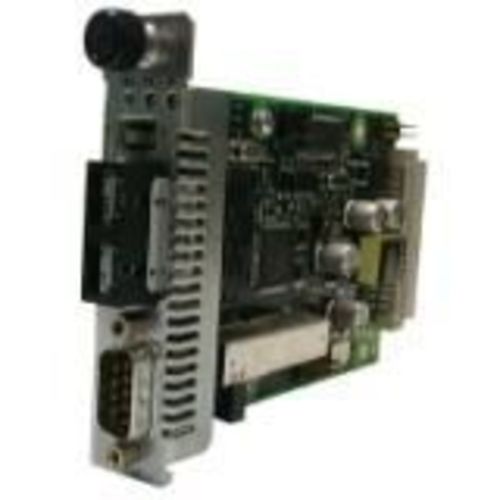

Transition Networks serial RS232 to Fiber Media Converter allows you to extend the distance between serial connections with the use of fiber optic cable. This full-featured converter transmits the full complement of RS232 flow control/handshaking signals optically and supports full or half-duplex data transmission at speeds up to 128Kb/s.
Specification:
Device Type: Media converter
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: Serial RS-232
Data Link Protocol: RS-232
Data Transfer Rate: 128 Kbps
Optical Wave Length: 1300 nm
Max Transfer Distance: 1.2 miles
Status Indicators: Power
Features: Flow control full duplex capability
Interfaces: 1 x RS-232 - DB-9 male
Compliant Standards: FCC Class A certified UL CISPR 22 Class A cUL EN55024 EN55022 Class A
Width: 0.9 in
Depth: 5 in
Height: 3.4 in
Weight: 1.1 lbs
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
Specification:
Device Type: Media converter
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: Serial RS-232
Data Link Protocol: RS-232
Data Transfer Rate: 128 Kbps
Optical Wave Length: 1300 nm
Max Transfer Distance: 1.2 miles
Status Indicators: Power
Features: Flow control full duplex capability
Interfaces: 1 x RS-232 - DB-9 male
Compliant Standards: FCC Class A certified UL CISPR 22 Class A cUL EN55024 EN55022 Class A
Width: 0.9 in
Depth: 5 in
Height: 3.4 in
Weight: 1.1 lbs
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
