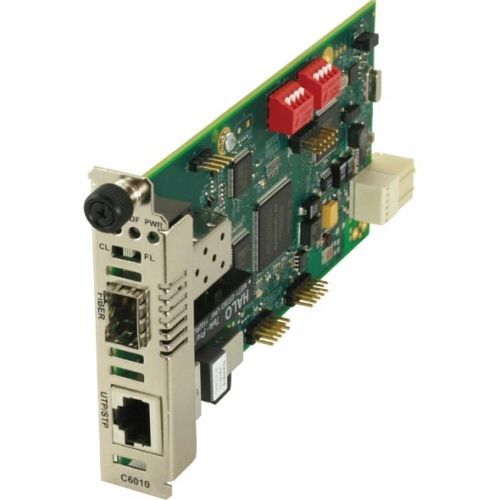

The T1/E1 copper to fiber network interface device (NID) provides a solution for those users that need to extend T1/E1 connections over fiber. The T1/E1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
Specification:
Device Type: Short-haul modem
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Transfer Rate: 2.048 Mbps
Optical Wave Length: 1310 nm
Line Rate: T-1/E-1
Framing Format: G.703
Remote Management Protocol: SNMP
Max Transfer Distance: 12.4 miles
Status Indicators: Power
Features: Manageable firmware upgradable
Compliant Standards: ANSI T1.102 ANSI T1.408
Interfaces: 1 x T1/E1 - SC single mode female x 2
Compliant Standards: FCC Class A certified EN55022 Class A
Power Consumption Operational: 2.6 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Specification:
Device Type: Short-haul modem
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Transfer Rate: 2.048 Mbps
Optical Wave Length: 1310 nm
Line Rate: T-1/E-1
Framing Format: G.703
Remote Management Protocol: SNMP
Max Transfer Distance: 12.4 miles
Status Indicators: Power
Features: Manageable firmware upgradable
Compliant Standards: ANSI T1.102 ANSI T1.408
Interfaces: 1 x T1/E1 - SC single mode female x 2
Compliant Standards: FCC Class A certified EN55022 Class A
Power Consumption Operational: 2.6 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
