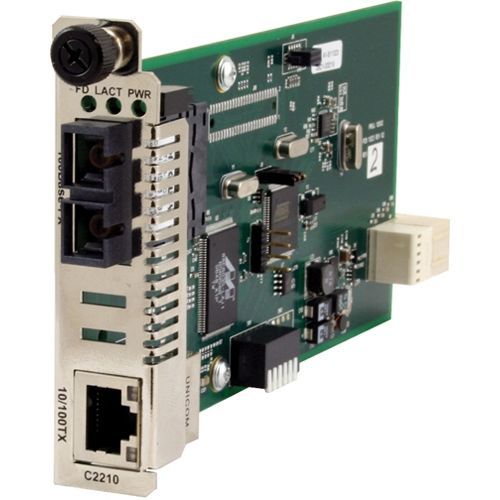

The ION C2210 device provides an interface allowing users to integrated fiber optic cabling into 10/100Base-TX copper environments.
Specification:
Device Type: Media converter
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-FX 100Base-TX
Data Link Protocol: Ethernet Fast Ethernet
Data Transfer Rate: 100 Mbps
Optical Wave Length: 1300 nm
MAC Address Table Size: 1K entries
Max Transfer Distance: 1.2 miles
Status Indicators: Link activity power
Features: Auto-negotiation AutoCross Far End Fault (FEF) firmware upgradable
Compliant Standards: IEEE 802.3
Interfaces: 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Compatible Slots: 1 x expansion slot
Compliant Standards: FCC Class A certified EN 60950 EN55024 EN55022 Class A
Power Consumption Operational: 2.5 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Specification:
Device Type: Media converter
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-FX 100Base-TX
Data Link Protocol: Ethernet Fast Ethernet
Data Transfer Rate: 100 Mbps
Optical Wave Length: 1300 nm
MAC Address Table Size: 1K entries
Max Transfer Distance: 1.2 miles
Status Indicators: Link activity power
Features: Auto-negotiation AutoCross Far End Fault (FEF) firmware upgradable
Compliant Standards: IEEE 802.3
Interfaces: 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Compatible Slots: 1 x expansion slot
Compliant Standards: FCC Class A certified EN 60950 EN55024 EN55022 Class A
Power Consumption Operational: 2.5 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
