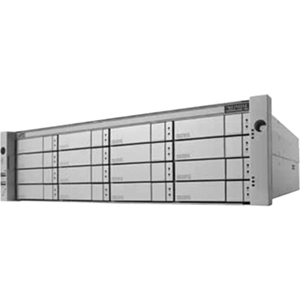

The Vess R2000 3U16-bay series is cutting-edge dual active-active high availability 8 Gbps FC and 1 & 10 Gbps IP SAN solutions that consolidate both block and file storage onto a single platform providing small to medium businesses a cost-effective way to meet performance goals while simplifying administration.
Specification:
Device Type: Hard drive array
Enclosure Type: Rack-mountable - 3U
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 16
Supported Drives: SATA-600 / SAS-2
HDD Array External Interface: iSCSI 8Gb Fibre Channel
Host Channels: 6
Type: 1 x 1.1 GHz
Type: RAID
Interface Type: SATA 6Gb/s / SAS 6Gb/s
Cache / Buffer Size ( Max ): 2 GB (installed) / 8 GB (max)
RAID Level: RAID 0 RAID 1 RAID 3 RAID 5 RAID 6 RAID 10 RAID 30 RAID 50 RAID 1E RAID 0+1 RAID 60
Type: Hot-swap - plug-in module hot-swap
Capacity: 0
Expansion Bays: 16 (total) / 16 (free) - 3.5 - hot-swap
Interfaces: 4 x Ethernet 1000Base-T
OS Required: Red Hat Linux SuSe Linux Microsoft Windows 7 Microsoft Windows Vista Microsoft Windows 2003 Microsoft Windows Server 2008 CentOS Ubuntu VMware ESXi 5 Microsoft Windows Server 2012 Citrix XenServer
Features: Native Command Queuing (NCQ) Tagged Command Queuing (TCQ)
Rack Mounting Kit: Included
Compliant Standards: 80 PLUS
Power Device: 3 x internal power supply - hot-plug
Max Supported Qty: 4
Power Redundancy: Yes
Power Redundancy Scheme: N+1
Voltage Required: AC 120/230 V - 50/60 Hz
Power Provided: 250 Watt
Width: 17.6 in
Depth: 20 in
Height: 5.2 in
Weight: 44.3 lbs
Service & Support: 3 years warranty
Service & Support Details: Limited warranty - 3 years
Min Operating Temperature: 41
Specification:
Device Type: Hard drive array
Enclosure Type: Rack-mountable - 3U
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 16
Supported Drives: SATA-600 / SAS-2
HDD Array External Interface: iSCSI 8Gb Fibre Channel
Host Channels: 6
Type: 1 x 1.1 GHz
Type: RAID
Interface Type: SATA 6Gb/s / SAS 6Gb/s
Cache / Buffer Size ( Max ): 2 GB (installed) / 8 GB (max)
RAID Level: RAID 0 RAID 1 RAID 3 RAID 5 RAID 6 RAID 10 RAID 30 RAID 50 RAID 1E RAID 0+1 RAID 60
Type: Hot-swap - plug-in module hot-swap
Capacity: 0
Expansion Bays: 16 (total) / 16 (free) - 3.5 - hot-swap
Interfaces: 4 x Ethernet 1000Base-T
OS Required: Red Hat Linux SuSe Linux Microsoft Windows 7 Microsoft Windows Vista Microsoft Windows 2003 Microsoft Windows Server 2008 CentOS Ubuntu VMware ESXi 5 Microsoft Windows Server 2012 Citrix XenServer
Features: Native Command Queuing (NCQ) Tagged Command Queuing (TCQ)
Rack Mounting Kit: Included
Compliant Standards: 80 PLUS
Power Device: 3 x internal power supply - hot-plug
Max Supported Qty: 4
Power Redundancy: Yes
Power Redundancy Scheme: N+1
Voltage Required: AC 120/230 V - 50/60 Hz
Power Provided: 250 Watt
Width: 17.6 in
Depth: 20 in
Height: 5.2 in
Weight: 44.3 lbs
Service & Support: 3 years warranty
Service & Support Details: Limited warranty - 3 years
Min Operating Temperature: 41
