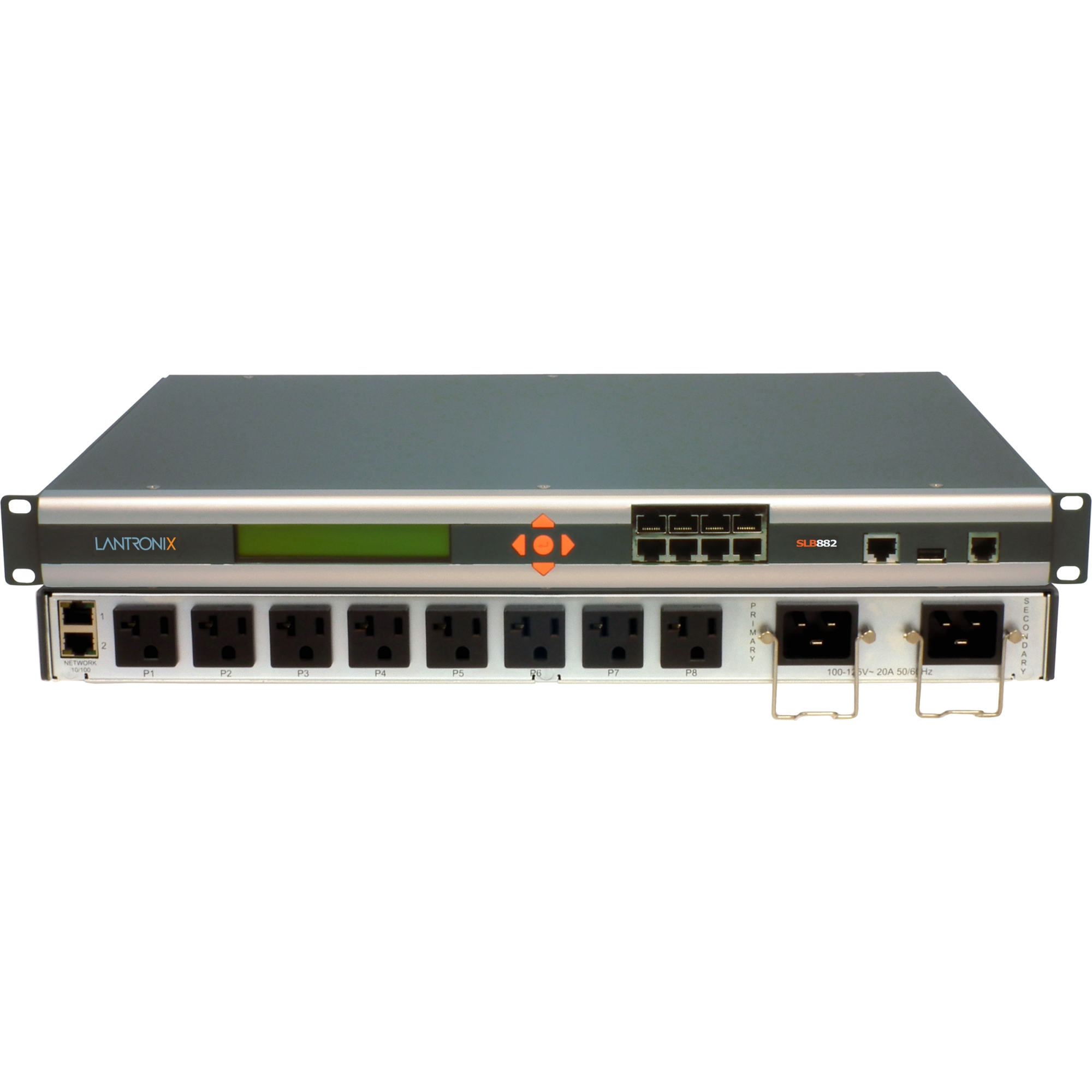

Personnel in offices apart from corporate headquarters often face unique challenges when it comes to managing IT equipment such as servers routers switches firewalls VPNs PBX and UPS systems. Often there is no dedicated or on-site system administrator. Therefore when issues with networked equipment arise they require a consultant or excessive phone time with corporate technical support - both adding cost and potentially extending downtime. With the redesigned Lantronix SLB secure branch office manager these are no longer concerns. IT administrators can remotely control and manage console and power (on/off/reboot) of IT equipment anytime anywhere.
Specification:
Device Type: Console server
Height (Rack Units): 1U
Built-in Devices: Status LCD keypad 8 port power control unit
Width: 17.2 in
Depth: 12 in
Height: 1.7 in
Weight: 9.9 lbs
Form Factor: Rack-mountable
Ports Qty: 8
Connectivity Technology: Wired
Data Link Protocol: Ethernet Fast Ethernet RS-232
Switching Protocol: Ethernet
Network / Transport Protocol: TCP/IP UDP/IP NTP FTP BOOTP DHCP DNS
Routing Protocol: RIP-1 RIP-2
Remote Management Protocol: SNMP 1 SNMP 2 Telnet SNMP 3 HTTP TFTP SSH
Features: Firewall protection DHCP support BOOTP support server health monitoring Management Information Base (MIB) NTP time synchronization
Encryption Algorithm: AES SSL
Authentication Method: Secure Shell (SSH) PAP CHAP
Type: 1 x modem (analog) - internal
Max Transfer Rate: 56 Kbps
Protocols & Specifications: ITU V.92
Analog Ports Qty: 1
Interfaces: 2 x 100Base-TX - RJ-45
Compliant Standards: UL VCCI cUL FCC Part 15 RoHS WEEE FIPS 197
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: AC 110 V ( 50/60 Hz )
Power Consumption Operational: 30 Watt
OS Provided: Linux
Service & Support: 5 years warranty
Service & Support Details: Limited warranty - 5 years
Min Operating Temperature: 32
Specification:
Device Type: Console server
Height (Rack Units): 1U
Built-in Devices: Status LCD keypad 8 port power control unit
Width: 17.2 in
Depth: 12 in
Height: 1.7 in
Weight: 9.9 lbs
Form Factor: Rack-mountable
Ports Qty: 8
Connectivity Technology: Wired
Data Link Protocol: Ethernet Fast Ethernet RS-232
Switching Protocol: Ethernet
Network / Transport Protocol: TCP/IP UDP/IP NTP FTP BOOTP DHCP DNS
Routing Protocol: RIP-1 RIP-2
Remote Management Protocol: SNMP 1 SNMP 2 Telnet SNMP 3 HTTP TFTP SSH
Features: Firewall protection DHCP support BOOTP support server health monitoring Management Information Base (MIB) NTP time synchronization
Encryption Algorithm: AES SSL
Authentication Method: Secure Shell (SSH) PAP CHAP
Type: 1 x modem (analog) - internal
Max Transfer Rate: 56 Kbps
Protocols & Specifications: ITU V.92
Analog Ports Qty: 1
Interfaces: 2 x 100Base-TX - RJ-45
Compliant Standards: UL VCCI cUL FCC Part 15 RoHS WEEE FIPS 197
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: AC 110 V ( 50/60 Hz )
Power Consumption Operational: 30 Watt
OS Provided: Linux
Service & Support: 5 years warranty
Service & Support Details: Limited warranty - 5 years
Min Operating Temperature: 32
