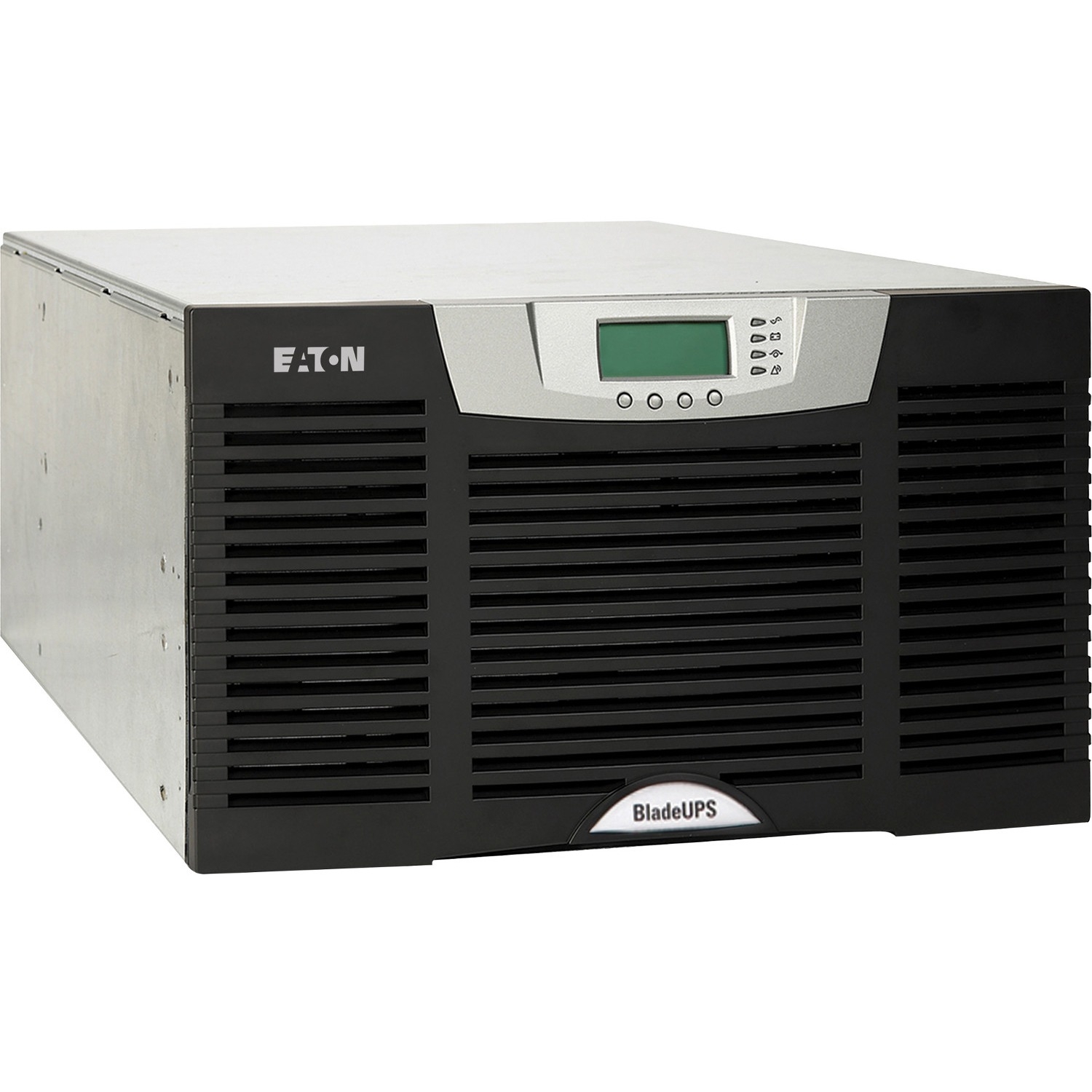

Eaton BladeUPS - UPS (rack-mountable) - AC 208 V - 8 kW - 3-phase - Ethernet 10/100 - 6U - TAA Compliant

EATON BLADEUPS 8KW 208V L21-30P/ L21-30R PXGXUPS

Specification:
Product Line: BladeUPS
Product Name: BladeUPS 8kW Rack-mountable UPS
Marketing Information: Rackmount UPS
Marketing Information: The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS rackmount uninterruptible power supply expands power protection from 8 to 60 kW in a single 19-inch rack while reducing energy and cooling costs.
Marketing Information: Eaton also offers BladeUPS Preassembled Systems the same great product just simplified. All you have to do is bring power to the unit and perform the simple start-up procedure. Top and bottom entry models are available.
Product Type: Dual Conversion Online UPS
Plug/Connector Type: NEMA L21-30P
Receptacles: NEMA L21-30R
Bypass Switch: Optional
Load Capacity (Watt): 8000 W
Input Voltage: 208 V AC
Output Voltage: 208 V AC
Circuit Breaker: Yes
Network Management: SNMP Manageable
Battery Management: ABM three-stage charging technology
Total Number of Expansion Slots: 1
Battery Chemistry: Valve-regulated Lead Acid (VRLA)
Backup/Run Time (Full Load): 9 Minute
Backup/Run Time (Half Load): 23 Minute
Hot Swappable: Yes
Sound Emission: 60 dB(A)
Thermal Dissipation: 900.81 BTU/h
Height: 10.3
Width: 17.4
Depth: 26
Rack Height: 6U
Form Factor: Rack-mountable
Package Contents: BladeUPS 8kW Rack-mountable UPS
Package Contents: Software Suite CD
Package Contents: PowerXpert Gateway Series UPS Card
Certifications & Standards: UL1778
Certifications & Standards: cUL
Certifications & Standards: FCC Part15 Class A
Certifications & Standards: ANSI C62.41
Certifications & Standards: Cat B-3
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Limited Warranty: 18 Month
