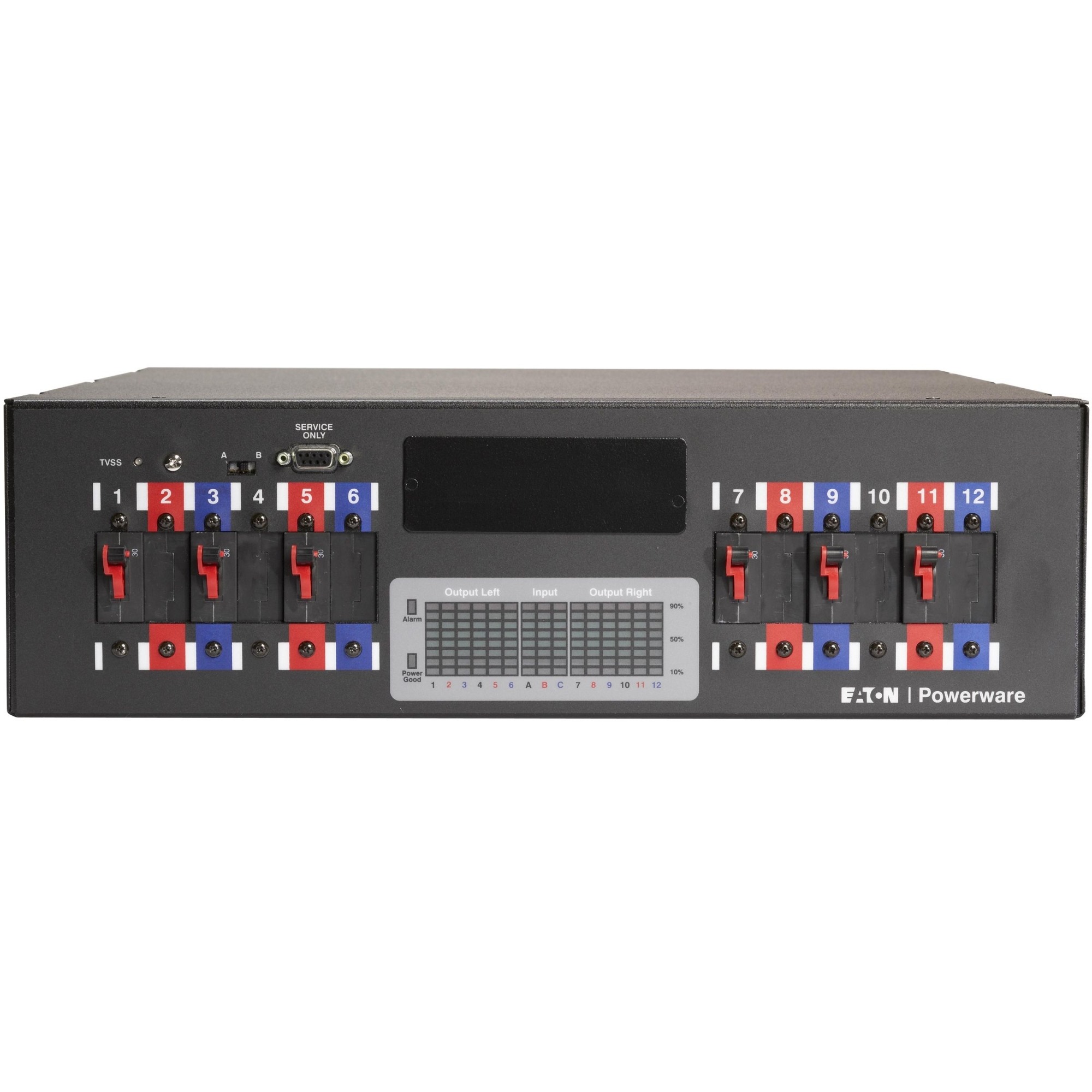

The Eaton RPM simplifies data center power distribution by delivering up to 36 kW of power in a 3U cabinet. Connect directly from a three-phase UPS (such as the Eaton BladeUPS) or other utility source to power secondary power distribution devices such as the Eaton ePDU. Twelve pole positions distribute power to completely customizable input and output configurations and voltages.
Specification:
Marketing Information: The Eaton RPM simplifies data center power distribution by delivering up to 36 kW of power in a 3U cabinet. Connect directly from a three-phase UPS (such as the Eaton BladeUPS) or other utility source to power secondary power distribution devices such a
Product Name: Rack Power Module (RPM)
Product Type: Power Module
Receptacles: 2 x NEMA L21-20R
Receptacles: 6 x NEMA 5-20R
Compatibility: Eaton BladeUPS
Depth: 19.9
Height: 5.2
Weight (Approximate): 30 lb
Width: 17.4
Current: 33.30 A
Frequency: 50 Hz
Input Voltage Range: 176 V AC to 260 V AC
Input Voltage: 208 V AC
Compatibility: Eaton BladeUPS
Receptacles: 2 x NEMA L21-20R
Receptacles: 6 x NEMA 5-20R
Width: 17.4
Frequency: 50 Hz
Input Voltage Range: 176 V AC to 260 V AC
Input Voltage: 208 V AC
Receptacles: 2 x NEMA L21-20R
Receptacles: 6 x NEMA 5-20R
