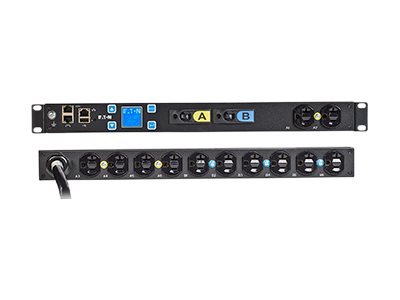

Eaton G3 Metered Input ePDUs provide a best-in-class design featuring billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
Specification:
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 1U
Cord Length: 10 ft
Color: Black
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 127 V
Frequency Provided: 50 - 60 Hz
Input Wiring: 1-phase
Frequency Required: 50 - 60 Hz
Input Connectors: Power NEMA L5-30
Power Output Connectors Details: 12 x power NEMA 5-20R
Output Voltage: AC 120 V 50 - 60 Hz
Max Electric Current: 24 A
Power Capacity: 2.88 kW
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100 RS-232
Interfaces: 1 x management (Ethernet) - RJ-45
Specification:
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 1U
Cord Length: 10 ft
Color: Black
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 127 V
Frequency Provided: 50 - 60 Hz
Input Wiring: 1-phase
Frequency Required: 50 - 60 Hz
Input Connectors: Power NEMA L5-30
Power Output Connectors Details: 12 x power NEMA 5-20R
Output Voltage: AC 120 V 50 - 60 Hz
Max Electric Current: 24 A
Power Capacity: 2.88 kW
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100 RS-232
Interfaces: 1 x management (Ethernet) - RJ-45
