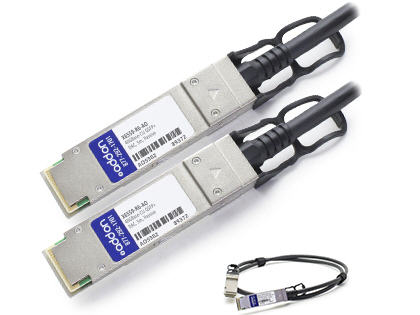

NetAPP X6559-R6 compatible 40GBase-CU QSFP+ to QSFP+ direct attach cable (Passive Copper 5m). A 100% NetAPP compatible 40GBase-CU QSFP+ to QSFP+ twinax direct attached cable that operates over passive copper with a maximum reach of 5.00m (16.40ft). This NetAPP compatible twinax cable has been programmed uniquely serialized and data-traffic and application tested to ensure it is 100% compliant and functional. The direct attached cable will initialize and perform identically to NetAPPs cable and is built to meet or exceed NetAPPs specifications and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.
Specification:
Network Cable Type: Twinaxial cable - SFF-8436/IEEE 802.3ba
Features: InfiniBand DDR Link support InfiniBand SDR Link support InfiniBand QDR Link support Fibre Channel over Ethernet (FCoE) passive
Length: 16.4 ft
Connector(s): 1 x QSFP+
Connector(s) (Other Side): 1 x QSFP+
OEM Manufacturer Equivalent Part Number: NetAPP X6559-R6
Compliant Standards: RoHS MSA
Service & Support: Limited lifetime warranty
Min Operating Temperature: 32
