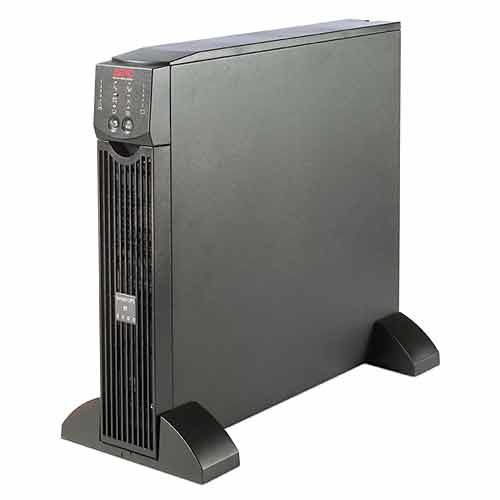

Smart-UPS RT is a family of high performance UPSs for servers networking equipment telecommunication systems industrial and medical equipment and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven industry-leading Smart-UPS functionality but feature double conversion on-line topology which delivers tight voltage and frequency regulation zero transfer time to and from battery and input power factor correction. While offering advanced performance and high availability features the Smart-UPS RT can be managed using PowerChute software as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration while easily converting to the 19 inch rack-mount mode with the addition of an APC Rail Kit.
Specification:
Power Device Type: UPS
UPS Technology: Online
Voltage Output: AC 220/230/240 V ( 50/60 Hz )
Voltage Input: AC 220/230/240 V
Circuit Protection: Circuit Breaker
Power Device / Form Factor: External
Features: Audible alarm
Width: 85.00 Inch
Depth: 483.00 Inch
Height: 432.00 Inch
Compliant Standards: C-tickCEEN 50091-1EN 50091-2EN 55022 Class AEN 60950EN 61000-3-2GOSTVDE
Enclosure Color: Black
Power Provided (W): 700 Watt
Power Provided (VA): 1000 VA
Surge Suppression: Standard
Battery Type: UPS Battery
Battery Technology: Lead-acid
Battery Installed Qty: 1
Battery Form Factor: Plug-in module
Battery / Run Time: 10.2 min at full load
Interfaces & Connections: Interfaces 1 x management - RS-232 - 9 pin D-Sub (DB-9) ; Expansion Slots Total (Free) 1 ( 1 ) x SmartSlot
Input Connector(s): IEC-320 C14
Output Connector(s): 6 x IEC 320 C13 2 x IEC Jumpers
Product Line: APC Smart-UPS RT
Service & Support Type: 2 years repair or replace
