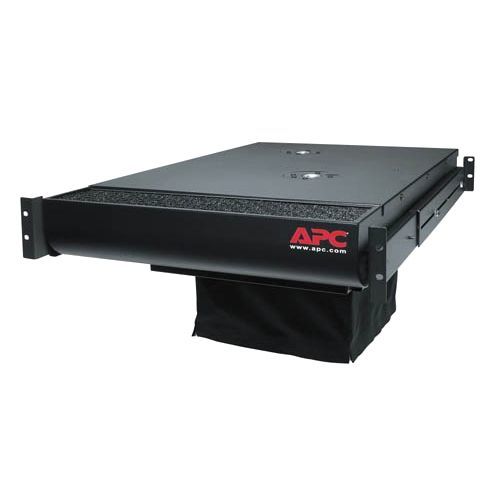

The Rack Air Distribution Unit is a 2U fan unit that works with an existing precision air conditioning system to deliver cool air to the equipment contained in a rack enclosure. The Rack Air Distribution Unit connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. The Rack Air Distribution Unit minimizes temperature differences between the top and bottom of the enclosure. It also prevents hot exhaust air from re-circulating to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where under floor air distribution is inadequate.
Specification:
Power Device Type: Power Distribution Unit
Voltage Input: 120V
Power Provided (W): 240 Watt
Enclosure Color: Black
Width: 16.6 Inch
Depth: 29 Inch
Height: 3.5 Inch
Compliant Standards: UL Recognized
Service & Support Type: 2 years repair or replace
Features: 2U; 200 AM; 3.50 kW; 503 CFM; 237.39 L/s; NEMA 5-15P; Rack Height 2U; American Power Conversion Corp;
Features: ACF001 Airflow Cooling System
Features: Rack Mounting brackets
Features: User Manual
Specification:
Power Device Type: Power Distribution Unit
Voltage Input: 120V
Power Provided (W): 240 Watt
Enclosure Color: Black
Width: 16.6 Inch
Depth: 29 Inch
Height: 3.5 Inch
Compliant Standards: UL Recognized
Service & Support Type: 2 years repair or replace
Features: 2U; 200 AM; 3.50 kW; 503 CFM; 237.39 L/s; NEMA 5-15P; Rack Height 2U; American Power Conversion Corp;
Features: ACF001 Airflow Cooling System
Features: Rack Mounting brackets
Features: User Manual
